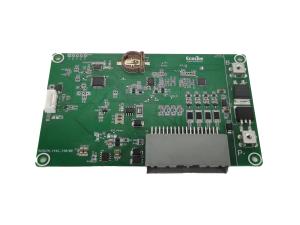

ECOLITE Smart Battery Management System Cusomized For 12V Cranking Batteries

Brand Name : Ecolite/OEM/ODM

Model Number : YKNQD4SC1V100

Place of Origin : China

MOQ : 1000UNITS

Price : Inquiry

Payment Terms : L/C, T/T

Supply Ability : 5000 Units per month

Delivery Time : 1-2 months

Packaging Details : Carton Pallet Container

Size（L*W*H) : 130mm*90mm*25mm

Charging Voltage : 14.6V

Voltage range Continuous : 8~17V

Operating temperature : -30℃~75℃

Consumption of running : ≤3W

Contact Now

ECOLITE Smart Battery Management System 600A Cusomized For 5-6Ah Starter Batteries

FEATURES

YKNQD4SC1V100 has basic acquisition functions such as 4-channel cell temperature acquisition,and 1-channel current acquisition.It also has control functions such as 1-channel relay drive and 1-channel mos drive.Equipped with battery overcharge,overdischarge,overcurrent,over temperature,under temperature,and short circuit protection functions.Equipped with Bluetooth,CAN,485 communication function.

ECOLITE Smart Battery Management System Cusomized For 12V Cranking Batteries

Technical Parameters
Basic parameters
Cell specifications 4 series of lithium iron phosphate cells
Interface type Charge and discharge are both at the same port
Charging Voltage 14.6V
Voltage range Continuous 8~17V
Charging current Continuous According to the relay
Discharge current According to the relay
Consumption of running ≤3W
Consumption of sleep ≤0.15W
Operating temperature -30℃~75℃
Size(L*W*H) 130mm*90mm*25mm

Configuration Parameter
Cell Type LFP
Rated voltage of battery 12.8V
The number of temperatures collected by BMS 4
Temperature sensor type NTC
CAN communication interface Yes
Switch button Yes
Bluetooth Yes
RS485 Yes
The number of voltages collected by BMS 4
Relay drive circuit 2
CAN baud rate 250/500Kbps
Current sensor 0.1mΩsplitter

FUNCTIONAL FEATURES

  • Supports 4 series of lithium iron phosphate battery packs.
  • Integrate hardware protection functions,such as overvoltage,low voltage,overcurrent,high temperature,low temperature,short circuit protection,etc;
  • Intelligent balancing function:It can set the starting voltage and starting difference for balancing,and can choose between charging balancing or static balancing;
  • Supports 4-channel battery cell temperature detection and 1-channel current detection.
  • Supports communication such as Bluetooth, RS485, CAN, etc;
  • Support 4~channel relay drive.
  • Support button switches.
  • Low power consumption: When the BMS is in a stationary state, it can enter a sleep state to reduce power consumption.
